Amiga 3000D

Specs

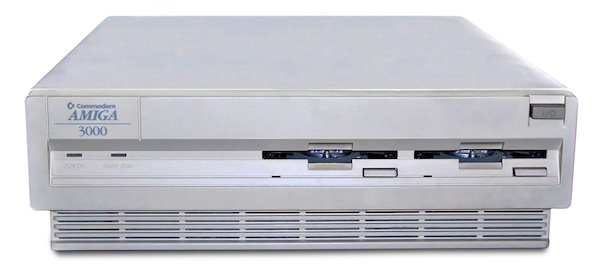

Fig. 1: Commodore Amiga 3000D

  • Released in 1992
  • CPU : Motorola 68030 @ 16 or 25 MHz
  • RAM : 2 MB

Capacitor List

We use only the highest quality capacitors in our kits (Rubycon, Nichicon or Panasonic). Our kits come with equal or higher rating capacitors.

Cap   -  Value - Rating - Type
C190  -  4.7uf -  50v   - Radial
C404  -  4.7uf -  50v   - Radial
C105  -  22uf  -  50v   - Radial
C107  -  22uf  -  50v   - Radial
C113  -  22uf  -  50v   - Radial
C317  -  22uf  -  50v   - Radial
C318  -  22uf  -  50v   - Radial
C433  -  22uf  -  50v   - Radial
C443  -  22uf  -  50v   - Radial
C112  -  47uf  -  25v   - Radial
C162  -  47uf  -  25v   - Radial
C163  -  47uf  -  25v   - Radial
C164  -  47uf  -  25v   - Radial
C165  -  47uf  -  25v   - Radial
C166  -  47uf  -  25v   - Radial
C167  -  47uf  -  25v   - Radial
C168  -  47uf  -  25v   - Radial
C169  -  47uf  -  25v   - Radial
C171  -  47uf  -  25v   - Radial
C173  -  47uf  -  25v   - Radial
C175  -  47uf  -  25v   - Radial
C407  -  47uf  -  25v   - Radial
C408  -  47uf  -  25v   - Radial
C899  -  47uf  -  25v   - Radial
C178  -  100uf -  25v   - Radial
C160  -  470uf -  25v   - Radial
C416  -  470uf -  25v   - Radial
C423  -  470uf -  25v   - Radial
C454  -  470uf -  25v   - Radial
C460  -  470uf -  25v   - Radial
C492  -  470uf -  25v   - Radial
C493  -  470uf -  25v   - Radial

(Daughterboard)
C751  -  22uf  -  50v   - Radial
C600  -  220uf -  50v   - Axial
C601  -  220uf -  50v   - Axial
C602  -  470uf -  50v   - Axial
C603  -  470uf -  50v   - Axial
