Amiga 4000D

Specs

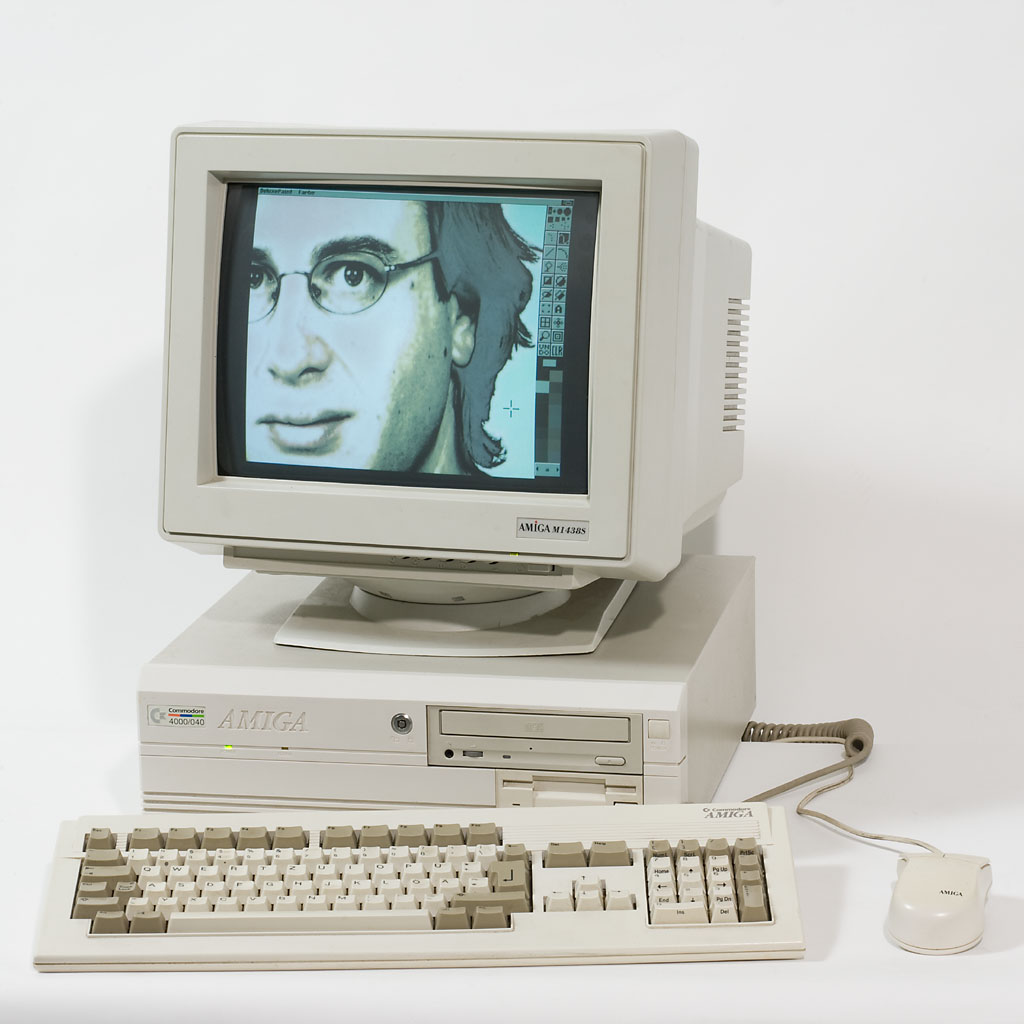

Fig. 1: Commodore Amiga 4000D

  • Released in 1992
  • CPU : Motorola 68EC030 or 68040 @ 25 MHz
  • RAM : 2-18 MB

Capacitor List

We use only the highest quality capacitors in our kits (Rubycon, Nichicon or Panasonic). Our kits come with equal or higher rating capacitors.

Cap   -  Value - Rating - Type
C200  -  4.7uf -  35v   - SMD
C404  -  4.7uf -  35v   - SMD
C460  -  10uf  -  50v   - SMD
C198  -  22uf  -  35v   - SMD
C317  -  22uf  -  35v   - SMD
C318  -  22uf  -  35v   - SMD
C433  -  22uf  -  35v   - SMD
C443  -  22uf  -  35v   - SMD
C751  -  22uf  -  35v   - SMD
C752  -  22uf  -  35v   - SMD
C187  -  47uf  -  35v   - SMD
C188  -  47uf  -  35v   - SMD
C189  -  47uf  -  35v   - SMD
C190  -  47uf  -  35v   - SMD
C191  -  47uf  -  35v   - SMD
C192  -  47uf  -  35v   - SMD
C194  -  47uf  -  35v   - SMD
C196  -  47uf  -  35v   - SMD
C407  -  47uf  -  35v   - SMD
C408  -  47uf  -  35v   - SMD
C181  -  100uf -  25v   - SMD
C185  -  470uf -  25v   - Radial
C400  -  470uf -  25v   - Radial

(Daughterboard)
C751  -  22uf  -  50v   - Radial
C600  -  220uf -  50v   - Radial
C601  -  220uf -  50v   - Radial
C602  -  470uf -  50v   - Radial
C603  -  470uf -  50v   - Radial
